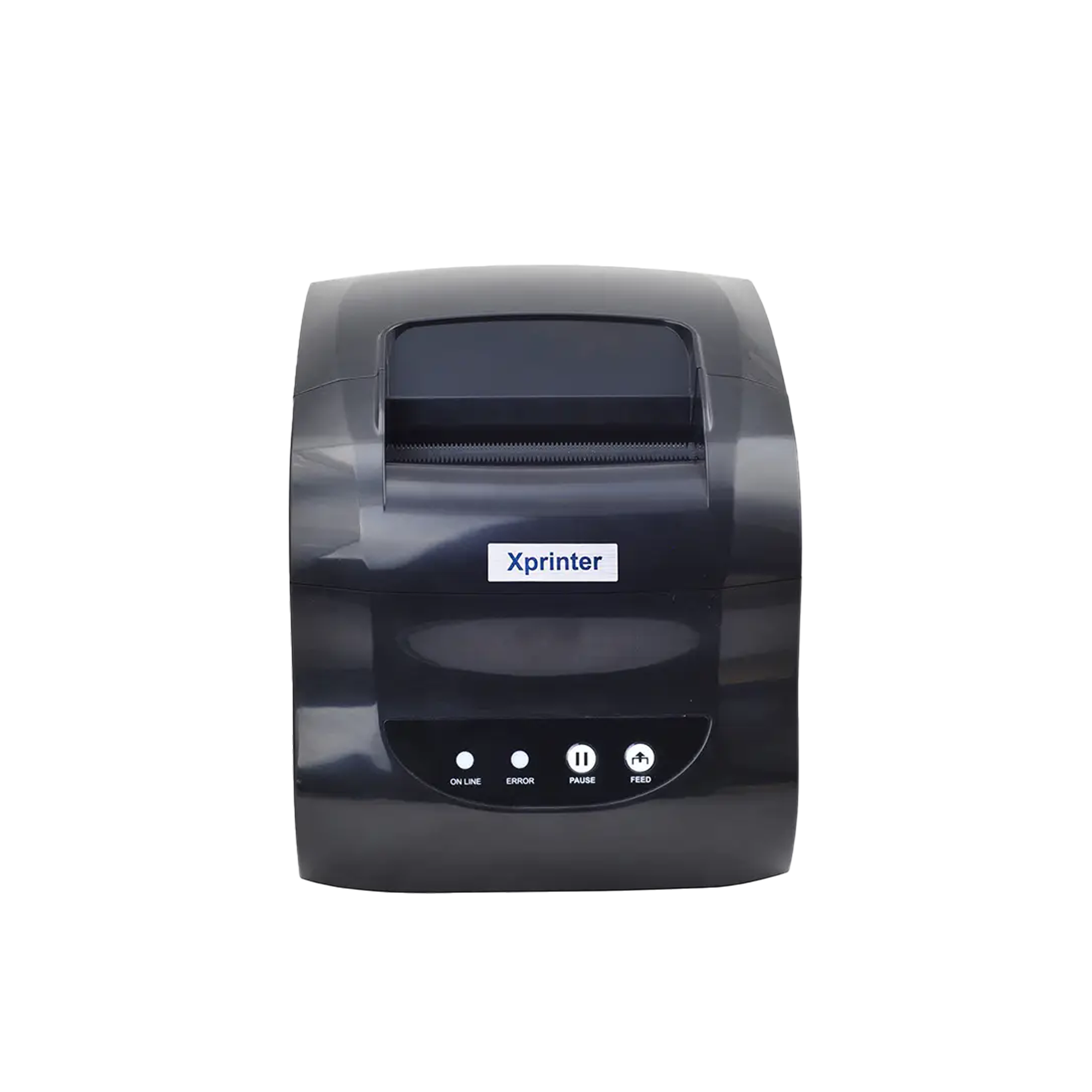

Xprinter XP-365B Thermal Label Printer – 20 to 80mm

Xprinter XP-365B – 20 to 80mm Thermal Label Printer

Printing Method

• Direct Thermal

Resolution

• 203 DPI

Print Speed

• Maximum: 127 mm/s

• Minimum: 101 mm/s

Print Width

• Maximum: 76 mm

Media Specifications

• Media Type: Thermal roll paper, thermal adhesive paper

• Media Width: 20 to 80 mm

• Media Thickness: 0.06 to 0.19 mm

• Maximum Roll Diameter: 82 mm

• Paper Loading: Easy Paper Loading

Memory

• RAM: 4 MB

• Flash: 4 MB

Interfaces (varies by model)

• USB

• USB + LAN

• USB + Wi-Fi

• USB + Bluetooth

• USB + Serial + LAN

• USB + Serial + LAN + Bluetooth

• USB + Serial + LAN + Wi-Fi

Sensors

• Print Head Temperature Sensor

• Paper End Sensor

• Cover Open Sensor

• Gap Sensor

Drawer Port

• 1 port (Pin 2 for cash drawer)

Supported Fonts

• FONT 0 to FONT 8

• K, TST24.BF2, TSS24.BF2

1D Barcodes Supported

• CODE128, EAN128, ITF, CODE39, CODE39C, CODE39S, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPCE, UPCE+2, UPCE+5, MSI, MSIC, PLESSEY, ITF14, EAN14

2D Barcodes Supported

• PDF417, QR Code, DataMatrix

Emulation

• TSPL

• ESC/POS

Physical Dimensions

• 212 × 140 × 144 mm (Depth × Width × Height)

Weight

• 0.94 kg

Print Head Life

• 100 km

Software Support

• Drivers for Windows

• SDK available for iOS, Android, Windows

Power Supply

• Input: DC 24V / 2.5A

Operating Environment

• Temperature: 5 to 45°C

• Humidity: 20% to 80% RH

Storage Environment

• Temperature: -40 to 55°C

• Humidity: up to 93% RH
