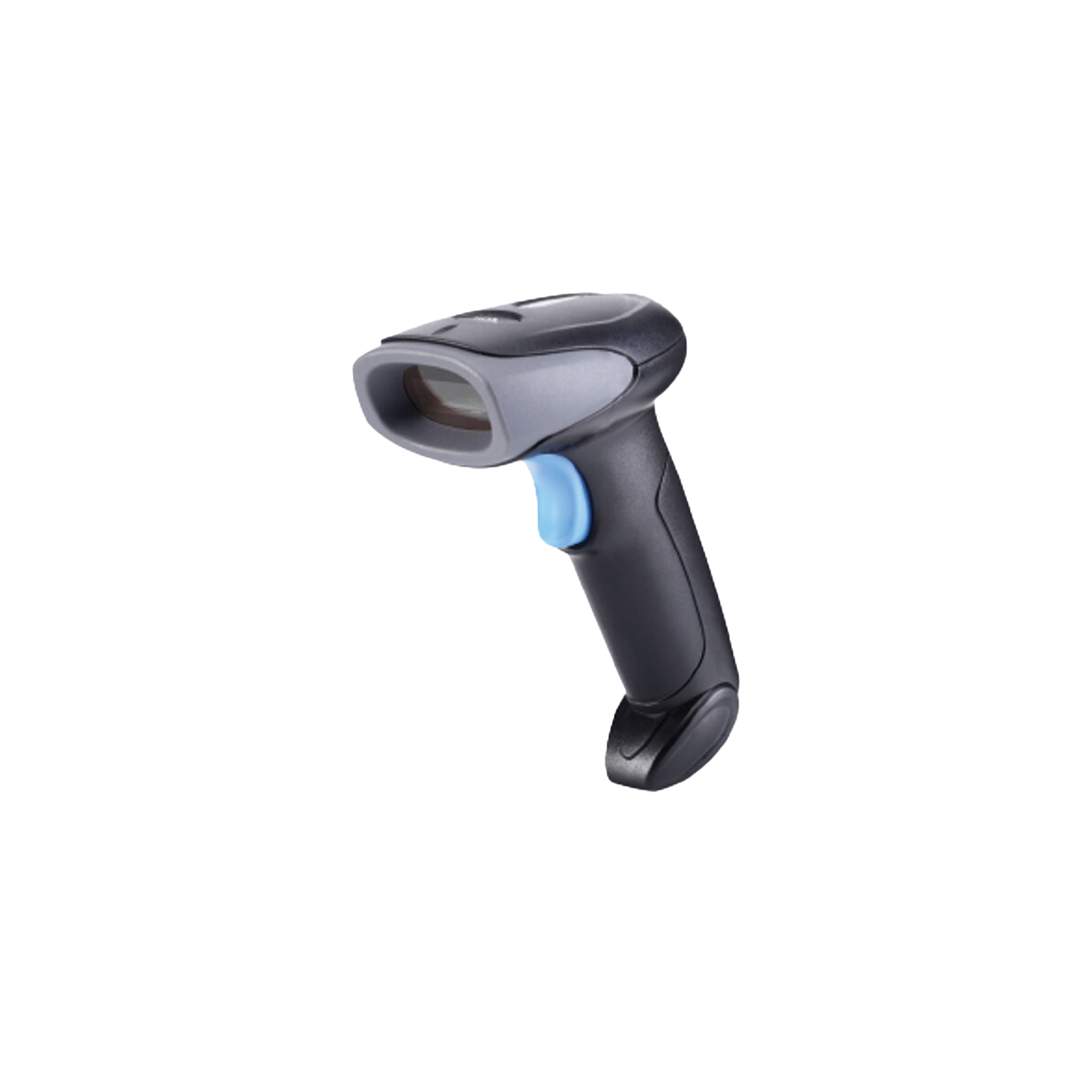

S20-W Wireless 2D USB Barcode Scanner

S20-W Wireless 2D USB Barcode Scanner

Key Features:

• Scanning Technology: CMOS sensor with 752 x 480 resolution

• Scan Modes: Manual and continuous

• Connectivity: Wireless (2.4GHz USB dongle) and wired (USB cable)

• Decoding Capability:

  • 1D Barcodes: EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Code 93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code 11, Codabar, MSI, RSS-14, RSS Limited, RSS Expanded, Standard 2 of 5, Plessey, China Post 25, GS1 Composite

  • 2D Barcodes: QR Code, Data Matrix, PDF417, Han Xin, Micro PDF417, Micro QR Code, MaxiCode, Aztec Code, Code 16K

• Scan Angle: ±60° (pitch), ±40° (roll), ±42° (yaw)

• Minimum Resolution: 3.5 mil

• Reading Distance: Up to 195 mm, depending on barcode type and density

• Wireless Range: 50–80 meters

• Battery Capacity: 2000 mAh

• Battery Life: Up to 72 hours of continuous use; up to 30 days standby

• Storage Capacity: Stores between 5,000 to 20,000 barcodes

• Durability: Withstands drops from up to 1.5 meters; IP54-rated for dust and water resistance

• Operating Temperature: 0°C to 50°C

• Storage Temperature: -40°C to 60°C

• Humidity Tolerance: 5% to 95% non-condensing

• Dimensions: 165 mm (L) x 97 mm (W) x 67 mm (H)

• Weight: Approximately 128 grams (without cable)

• Included Accessories: USB cable (1.5 meters), USB dongle, user manual
