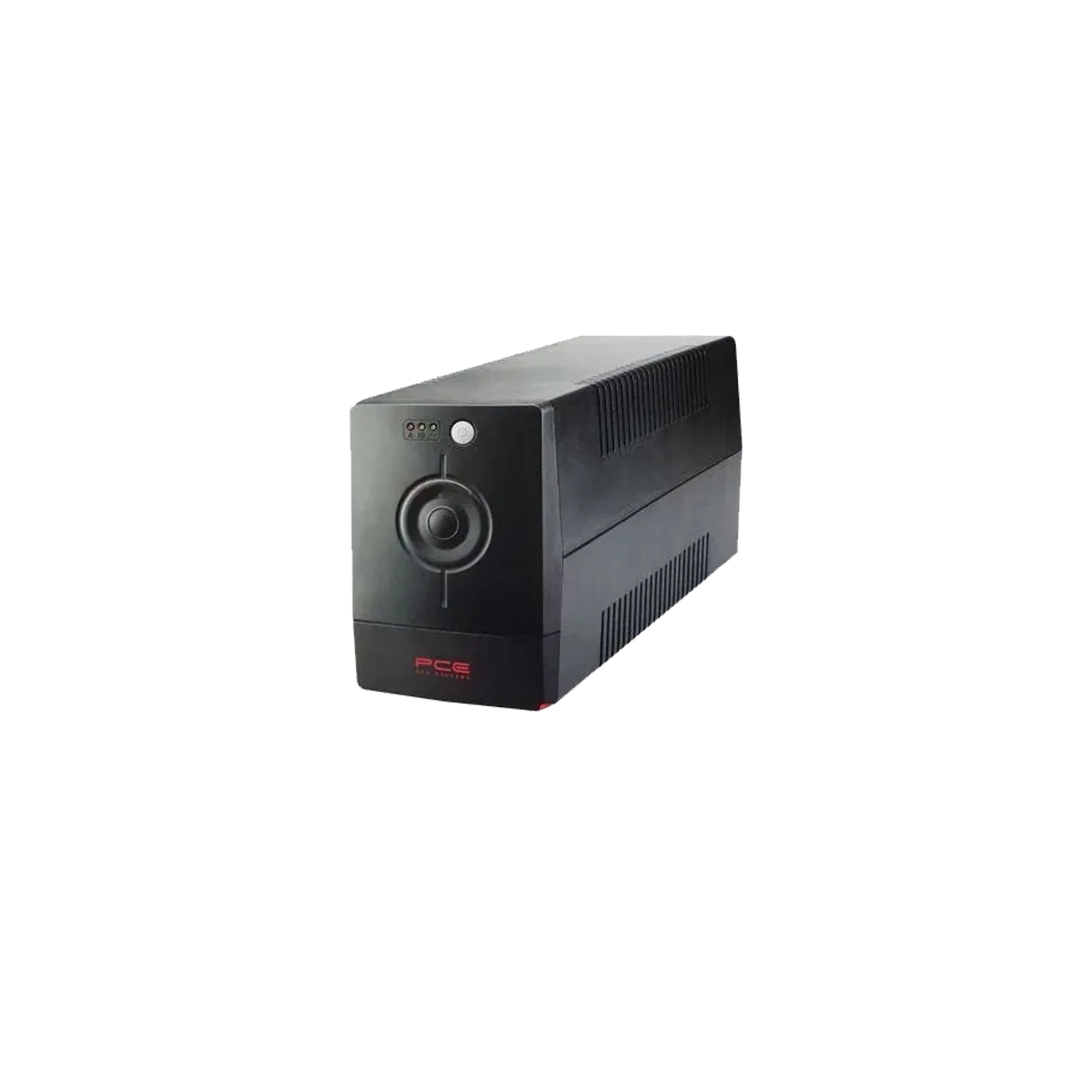

PCE M8-1500 1500VA / 600W UPS

PCE M8-1500 Line-Interactive UPS – 1500VA / 600W

Reliable Power Protection for Home and Office

The PCE M8-1500 is a line-interactive Uninterruptible Power Supply (UPS) designed to safeguard your electronic devices against power disturbances. With its integrated Automatic Voltage Regulation (AVR) and compact design, it's ideal for home offices, workstations, and entertainment

Key Features:

• Capacity: 1500VA / 600W

• Input Voltage: 220/230/240 VAC

• Voltage Range: 162–290 VAC

• Frequency: 50 or 60 Hz ±10% (auto-sensing)

• Output Voltage (Backup Mode): 220/230/240 VAC ±1%

• Output Frequency (Backup Mode): 50 or 60 Hz ±1%

• Waveform: Simulated Sine Wave

• Transfer Time: Typical 2 to 6 ms

• Battery: 2 x 12V/7Ah Sealed Lead Acid

• Recharge Time: 4–6 hours to 90% capacity

• Backup Time: Approximately 10–20 minutes, depending on load

• Protection: Overload, discharge, and overcharge protection

• Indicators: LED indicators for AC mode (green lighting) and battery mode (green flashing)

• Alarms: Audible alarms for battery mode, low battery, overload, and fault conditions

• Output Receptacles: 2 x Universal Sockets

• Communication Interface: USB or RS232 (optional)

• Dimensions (W x D x H): 101 x 279 x 142 mm

• Net Weight: Approximately 7.2 kg

Applications:

Ideal for protecting stand-alone home PCs, office workstations, multimedia setups, and gaming systems from power disturbances.
