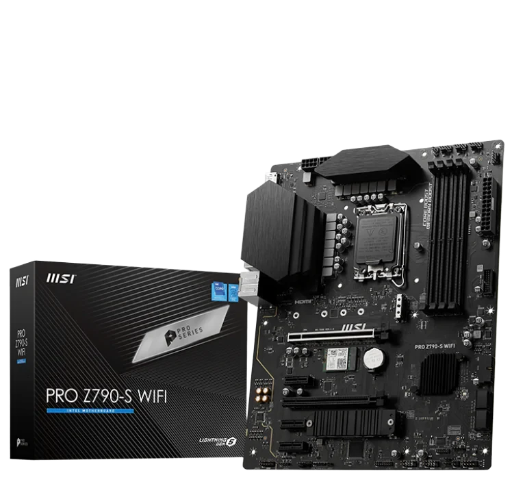

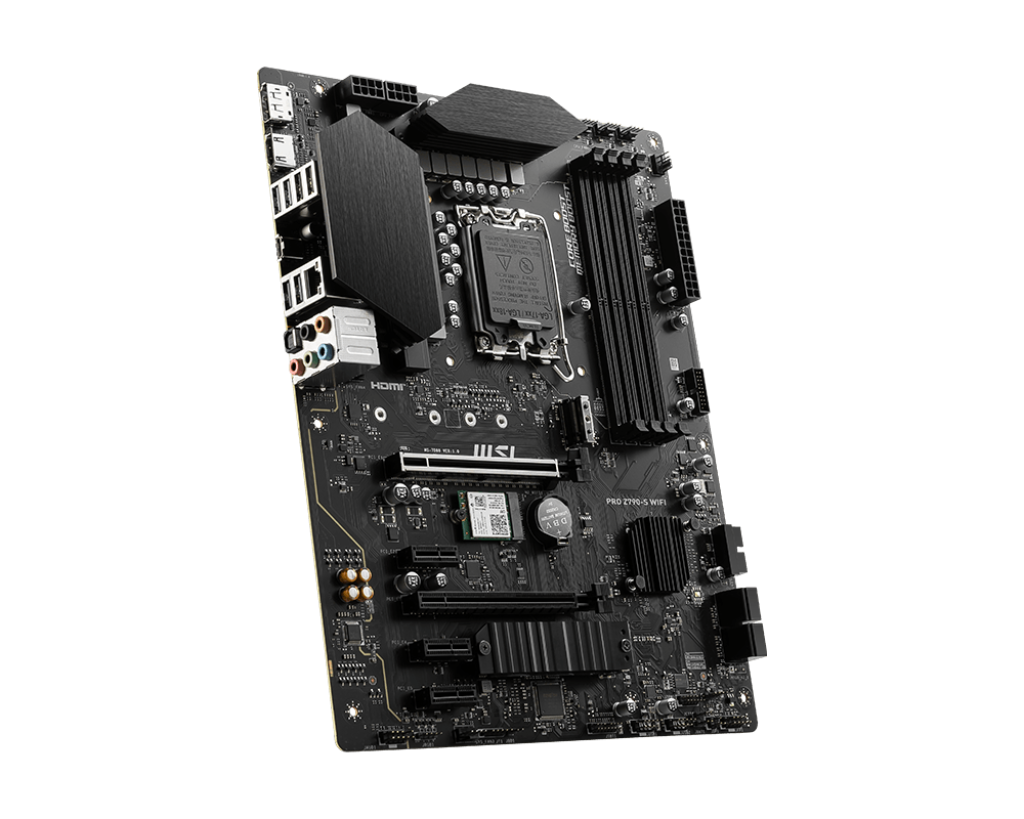

MSI PRO Z790-S WiFi ProSeries - DDR5

INTEL Z790

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:

• 1DPC 1R Max speed up to 6600+ MHz

• 1DPC 2R Max speed up to 6400+ MHz

• 2DPC 1R Max speed up to 6000+ MHz

• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

2x PCI-E x16 slot
3x PCI-E x1 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 3.0 supports up to x4 (From Chipset)

• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• 2x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 4x USB 3.2 Gen1 Type A (Rear)

• 4x USB 3.2 Gen1 Type A (Front)

• 1x USB 3.2 Gen2x2 Type C (Rear)

Realtek® RTL8125BG 2.5Gbps LAN

Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2_WIFI1 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Pump Fan

• 4x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x TBT connector (JTBT, supports RTD3)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 4x USB 3.2 Gen1 Type A ports
