MSI PRO H610M-S DDR4

Micro-ATX – Support 14th/13th/12th Gen Intel Core Processors, LGA 1700, 1x PCIe 4.0 x16 Slot, 1 x M.2 Gen3, USB 3.2 Gen1, 1G LAN, HDMI 1.4 & VGA

$90.00$80.00

Chipset

INTEL H610

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700

Memory

2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory

Onboard Graphics

1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

Storage

1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
2x SATA 6G

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

LAN

Realtek® RTL8111H Gigabit LAN

Internal IO

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports

LED FEATURE

4x EZ Debug LED

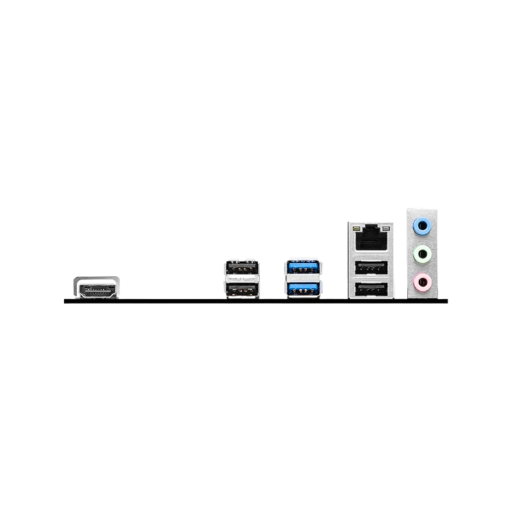

BACK PANEL PORTS

  1. HDMI™

  2. USB 3.2 Gen 1 5Gbps (Type-A)

  3. USB 2.0

  4. LAN port

  5. Audio Connectors

  6. USB 2.0

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

BOX CONTENT

PCB Info

mATX
200mmx236.16mm

The MSI Pro H610M-S DDR4 motherboard is a robust and efficient option for users seeking reliability and performance in their computing build. Designed with the Intel H610 chipset, this micro-ATX motherboard supports the latest Intel processors, making it an ideal choice for both casual users and professionals. It features four DDR4 memory slots, allowing for significant memory expansion and speed, which enhances multitasking capabilities. The motherboard also provides a variety of connectivity options, including multiple USB ports, HDMI, and audio jacks, ensuring versatile integration with peripheral devices. With its compact size, the MSI Pro H610M-S is perfect for space-constrained setups while still delivering outstanding functionality, making it a smart choice for budget-conscious gamers and office users alike. Its durable build quality and user-friendly interface further enhance its appeal, promising a seamless experience in any computing environment.
