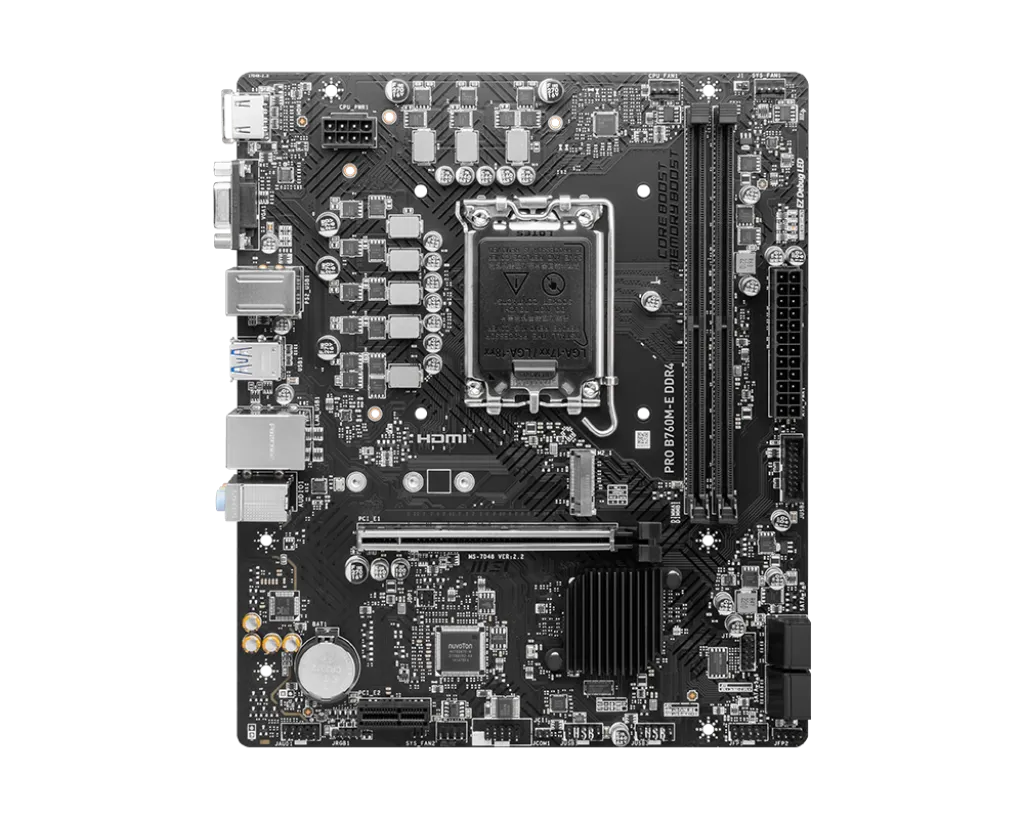

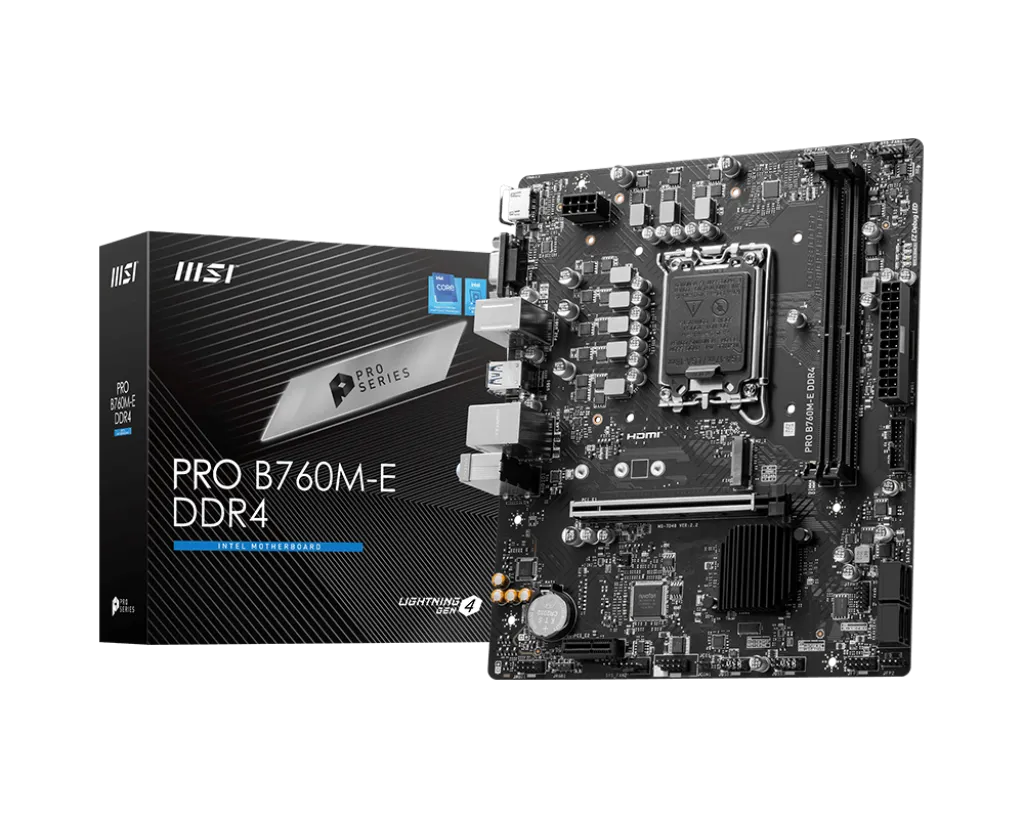

MSI PRO B760M-E - DDR4

Micro-ATX – Supports Intel 14th, 13th & 12th Gen Core Processors, LGA 1700 – DDR4 Memory Boost 4800+MHz/OC, PCIe 4.0 x16 Slot, M.2 Gen4 Slot

$120.00$100.00

CHIPSET	INTEL B760
CPU SUPPORT	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700
MEMORY	2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS	1x HDMI™ 1x VGA Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to (From CPU) PCI_E2 PCIe 3.0 supports up to (From Chipset)
STORAGE	1x M.2 slot M.2_1 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

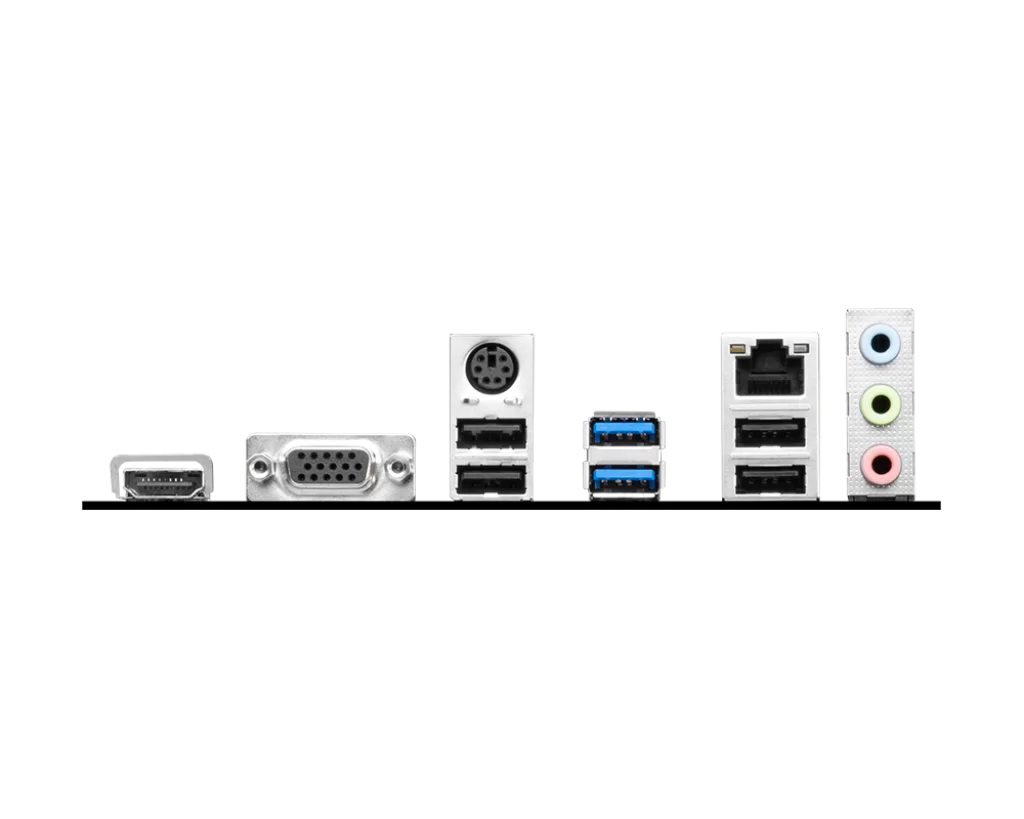

USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front)
LAN	Realtek® RTL8111H Gigabit LAN
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
INTERNAL I/O	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 1x USB 3.2 Gen1 Type A
LED FEATURE	4x EZ Debug LED

The MSI Pro B760M-E DDR4 motherboard is an exceptional choice for those looking to build a powerful and reliable system. Designed to support Intel's latest processors, this motherboard offers a solid foundation for both gamers and professionals alike. With its compact Micro-ATX form factor, it fits seamlessly into smaller cases while still providing ample connectivity options including multiple USB ports, M.2 slots for ultra-fast storage, and support for high-speed DDR4 memory. The inclusion of advanced cooling solutions ensures optimal performance during demanding applications, making it perfect for content creators and gamers who require stability and efficiency. With MSI's quality and reliability, the Pro B760M-E DDR4 motherboard is a smart investment for anyone looking to elevate their computing experience.
