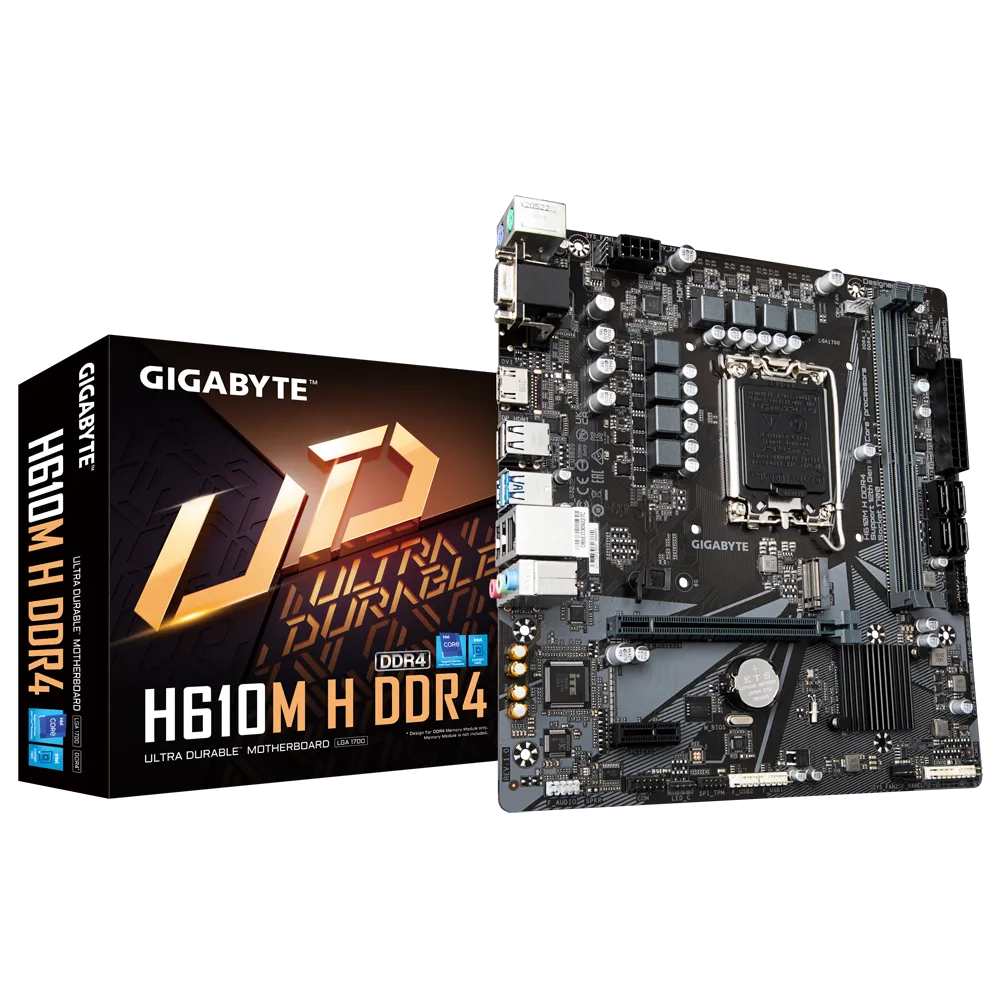

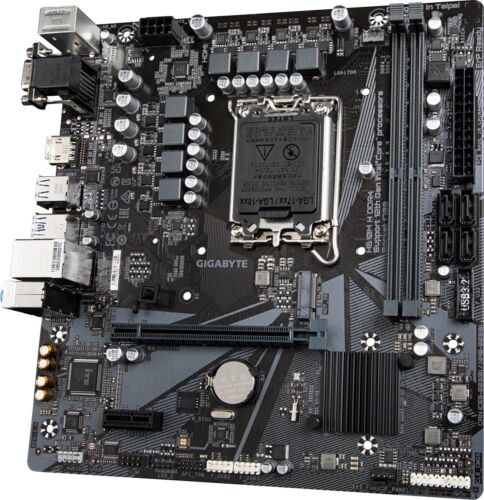

GIGABYTE H610M H - DDR4

• CPU

  1. LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

  2. L3 cache varies with CPU

  * Please refer to “CPU Support List” for more information.

• Chipset

  1. Intel® H610 Express Chipset

• Memory

  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer “Memory Support List” for more information.)

• Onboard Graphics

  Integrated Graphics Processor-Intel® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

  2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports

  (Graphics specifications may vary depending on CPU support.)

• Audio

  1. Realtek® Audio CODEC

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel
     You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• LAN

  1. Intel® GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)

  2. 1 x PCI Express x1 slot
     (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

• Storage Interface

  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)

  2. 4 x SATA 6Gb/s connectors

• USB

  Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  2. 4 x USB 2.0/1.1 ports on the back panel

  Chipset+USB 2.0 Hub:

  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

• Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x M.2 Socket 3 connector

  4. 4 x SATA 6Gb/s connectors

  5. 1 x CPU fan header

  6. 2 x system fan headers

  7. 1 x RGB LED strip header

  8. 1 x front panel header

  9. 1 x front panel audio header

  10. 1 x USB 3.2 Gen 1 header

  11. 2 x USB 2.0/1.1 headers

  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

  13. 1 x serial port header

  14. 1 x Clear CMOS jumper

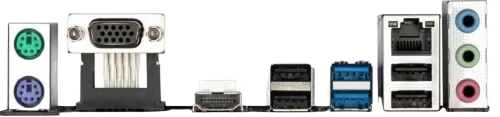

• Back Panel Connectors

  1. 1 x PS/2 keyboard port

  2. 1 x PS/2 mouse port

  3. 1 x D-Sub port

  4. 1 x HDMI 2.0 port

  5. 2 x USB 3.2 Gen 1 ports

  6. 4 x USB 2.0/1.1 ports

  7. 1 x RJ-45 port

  8. 3 x audio jacks

• I/O Controller

  1. iTE® I/O Controller Chip

• H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Overheating warning

  5. Fan fail warning

  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.

• BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Unique Features

  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     EasyTune
     Smart Backup
     System Information Viewer

  2. Support for Q-Flash

  3. Support for Xpress Install

The Gigabyte H610M H DDR4 motherboard is an affordable and reliable option for users looking to build or upgrade their systems. Designed to support Intel's latest 12th and 13th generation processors, this micro ATX motherboard offers a range of features that cater to both gamers and everyday users. With support for DDR4 memory, it can handle high-speed RAM, ensuring smooth multitasking and performance. The motherboard also includes multiple connectivity options, such as USB 3.2 ports, audio jacks, and expansion slots for graphics cards and storage devices. Its compact design makes it suitable for smaller cases, without compromising on functionality. Whether you're setting up a home office or a gaming rig, the Gigabyte H610M H DDR4 motherboard provides a solid foundation for your computing needs.
